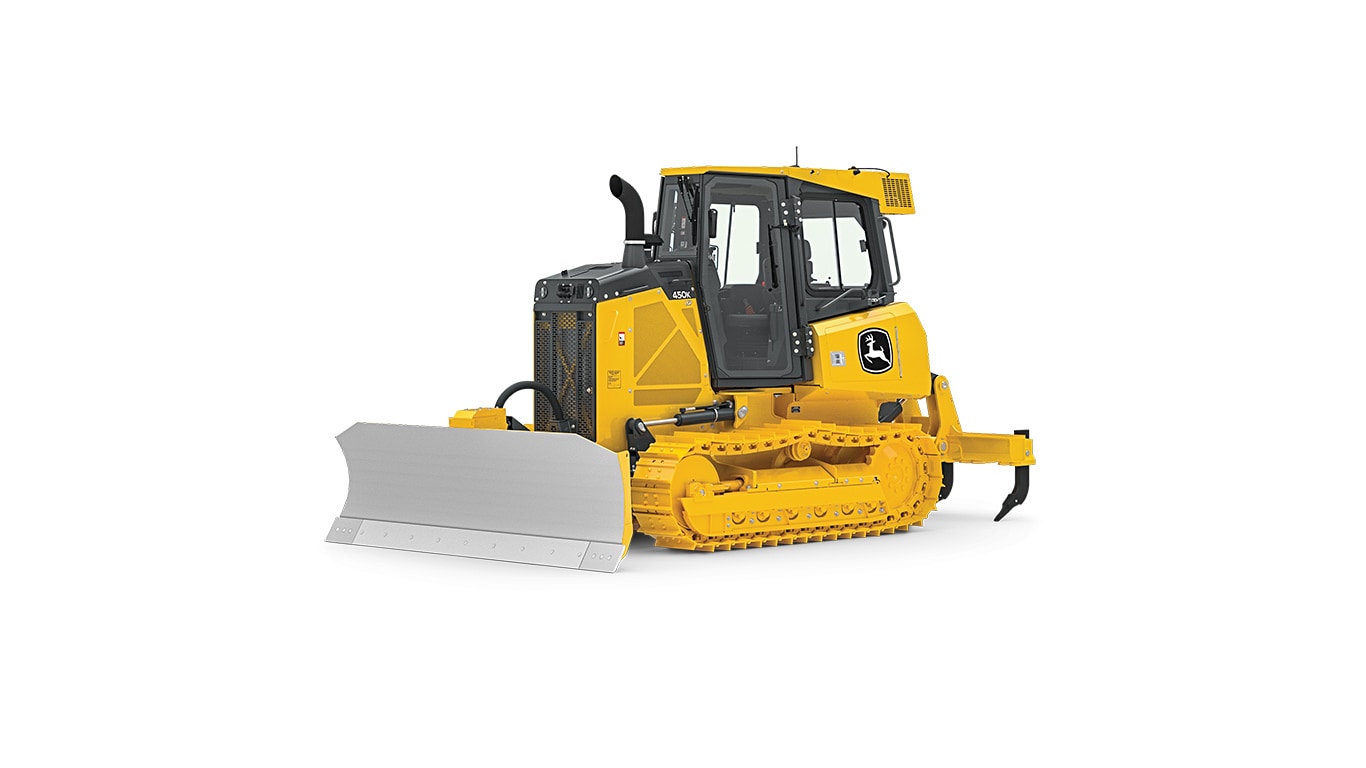

450K-Crawler Dozer

  • Net Power: 60 kW (80 hp) at 2,200 rpm
  • Operating Weight: 7 959–8 522 kg (17,510–18,752 lb.)
  • Track on Ground: 2 184 mm (86 in.)
Download Product Brochure

Features

Engine

EPA Final Tier 4 (FT4)/EU Stage IV diesel meets emission regulations without loss of power or torque. Four-valve head delivers increased intake-air and exhaust-gas flow for each wet-sleeve cylinder, for long-lasting performance.

Standard Eco mode maximizes fuel usage by up to 20 percent compared to conventional torque-converter transmissions, automatically adjusting engine rpm and powertrain settings based on load, without loss of performance.

Grade-Control Ready

When you order your dozer with electrohydraulic (EH) controls, it’s grade-control ready, giving you the ability to add the grade-control system of your choice. Optional Slope Control provides in-depth factory integration and is supported by your John Deere dealer.

Optional Slope Control system provides simple-to-use grade control that allows operators to set a desired slope and hold grade through changes in existing terrain. It helps both new and veteran operators hold grade with less effort and without needing an external elevation reference.

Cab and Controls

Cab-forward design allows a commanding view behind, below, and beyond the blade. Side and rear visibility from inside the cab is open to the surrounding jobsite.

Sealed-switch module (SSM) allows low-effort control of keyless start and enables exclusive features such as turbocharger cool-down, auto shutdown, and Eco mode.

Total Machine Control enables an operator to customize control of decelerator mode and response, forward/reverse ground speed, steering modulation, and forward/reverse speed ratios, and even record machine usage.

Simple Maintenance

Available quick fluid-evacuation system helps speed servicing. 500-hour engine oil and 2,000-hour transmission and hydraulic fluid intervals decrease maintenance downtime and expense.

Hydrostatic Transmission

Infinitely variable range to 9.7 km/h (6.0 mph) allows total flexibility to match ground speed to the load.

Counter-rotation boosts productivity by enabling an operator to overcome heavy corner loads and quickly reposition the blade on the go. Provides space-saving spot turns, too.

Specifications

  • Engine Manufacturer : John Deere
  • Engine Model: PowerTech PWS 4045
  • Displacement, ltr (Inches³): 4.5 (276)
  • Rated Speed, rpm: 2200
  • Engine Output - Net, kW (hp): 60 (80)
  • Transmission Type: Hydrostatic
  • Speeds Mode 1 - Forward: 1
  • Speeds Mode 1 - Reverse: 1
  • Final Drive: Triple Reduction - Planetary
  • Track Rollers: 6
  • Shoe - Pitch, mm (inches): 160 (6.3)
  • Shoe - Type: Single Grouser - Moderate Service
  • Ground Contact Area, cm² (Inches²): 17755 (2752)
  • Number Of Shoes: 40
  • Height - Max, mm (ft/in): 2799 (9 ft 2 in)
  • Ground Clearance, mm (inches): 329 (13)
  • Track Length - On Ground, mm (ft/in): 2184 (7 ft 2 in)
  • Length - PAT Blade Straight, mm (ft/in): 4016 (13 ft 2 in)
  • Track Gauge, mm (ft/in): 1448 (4 ft 9 in)
  • Blade - Width, mm (ft/in): 2464 (8 ft 1 in)
  • Blade - Dig Depth, mm (inches): 528 (20.8)
  • Blade - Tilt, mm (ft/in): 338 (1 ft 1 in)
  • Steering - Differential: No
  • Fuel Tank, ltr (gallons (US)): 202 (53.45)
  • Hydraulic Tank, ltr (gallons (US)): 100 (26.42)
  • Blade - Capacity, m³ (yd³): 1.6 (2.1)
  • Speed - Forward Maximum, kph (mph): 8 (5)
  • Speed - Reverse Maximum, kph (mph): 8 (5)
  • Ground Bearing Pressure, kPa (PSI): 43.9 (6.4)
  • Implement Pump - Type: Gear
  • Implement Pump - Flow, lt/min (gallons (US) / min): 80 (21)
  • Implement Pump - Pressure, bar (PSI): 206.84 (3000)
  • Operating Weight, kg (lbs): 7959 (17510)
  • DRIVELINE

  • Engine Manufacturer : John Deere
  • Engine Model: PowerTech PWS 4045
  • Displacement, ltr (Inches³): 4.5 (276)
  • Rated Speed, rpm: 2200
  • Engine Output - Net, kW (hp): 60 (80)
  • Transmission Type: Hydrostatic
  • Speeds Mode 1 - Forward: 1
  • Speeds Mode 1 - Reverse: 1
  • Final Drive: Triple Reduction - Planetary
  • Track Rollers: 6
  • Shoe - Pitch, mm (inches): 160 (6.3)
  • Shoe - Type: Single Grouser - Moderate Service
  • Ground Contact Area, cm² (Inches²): 17755 (2752)
  • Number Of Shoes: 40
  • DIMENSIONS

  • Height - Max, mm (ft/in): 2799 (9 ft 2 in)
  • Ground Clearance, mm (inches): 329 (13)
  • Track Length - On Ground, mm (ft/in): 2184 (7 ft 2 in)
  • Length - PAT Blade Straight, mm (ft/in): 4016 (13 ft 2 in)
  • Track Gauge, mm (ft/in): 1448 (4 ft 9 in)
  • Blade - Width, mm (ft/in): 2464 (8 ft 1 in)
  • Blade - Dig Depth, mm (inches): 528 (20.8)
  • Blade - Tilt, mm (ft/in): 338 (1 ft 1 in)
  • Steering - Differential: No
  • CAPACITIES

  • Fuel Tank, ltr (gallons (US)): 202 (53.45)
  • Hydraulic Tank, ltr (gallons (US)): 100 (26.42)
  • Blade - Capacity, m³ (yd³): 1.6 (2.1)
  • PERFORMANCE

  • Speed - Forward Maximum, kph (mph): 8 (5)
  • Speed - Reverse Maximum, kph (mph): 8 (5)
  • Ground Bearing Pressure, kPa (PSI): 43.9 (6.4)
  • Implement Pump - Type: Gear
  • Implement Pump - Flow, lt/min (gallons (US) / min): 80 (21)
  • Implement Pump - Pressure, bar (PSI): 206.84 (3000)
  • WEIGHTS

  • Operating Weight, kg (lbs): 7959 (17510)
